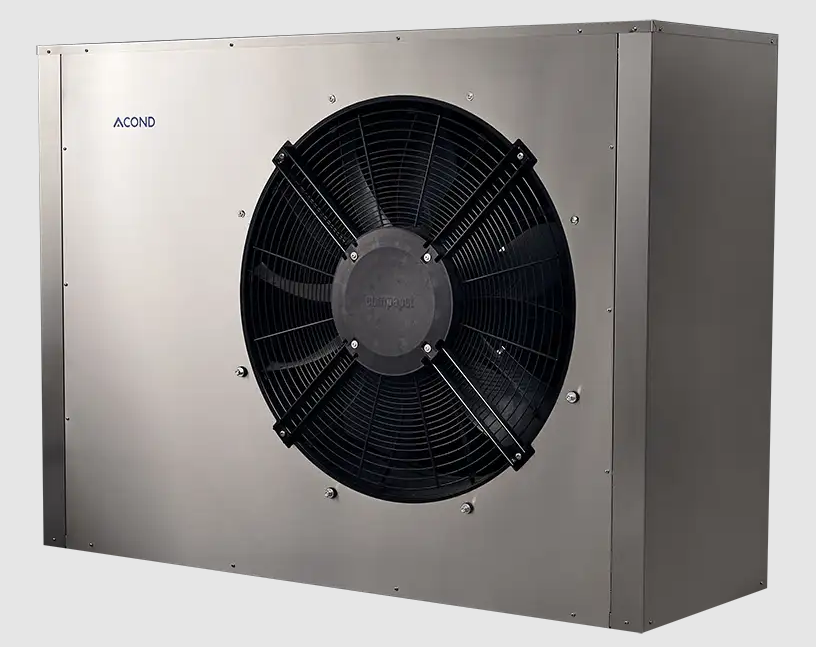

Acond Grandis L til store huse, landbrug og mindre erhverv.
| Rated output (Prated) | 22 kW |
| SCOP underfloor heating (W35) | 4,95 |
| SCOP radiators (W55) | 3,62 |
| Energy class 35 °C / 55 °C | A+++ / A++ |
| Lydtryk 6 m | 29 dB(A) |
| Power supply | 3-faset 400 V, 25 A |
| Dimensions (H×W×D) | 1357 × 1792 × 742 mm |
| Weight | 283 kg |
Included in the price
- The heat pump (outdoor unit)
- Control cabinet with controller and wiring diagram
- Room thermostat
- Hot water sensor and backup sensor for bivalent operation
- Full 5-year warranty
Not included
- Installation by an authorised plumbing and electrical installer
- Hot water cylinder and buffer tank if needed
- Pipes, valves and other installation materials
- Shipping
Common to all Acond heat pumps
- Full 5-year warranty on all heat pumps
- Developed, built and tested in Europe (Czech Republic)
- Natural R290 refrigerant (propane) – future-proof and climate-friendly
- Monobloc: the refrigerant circuit is sealed at the factory, only water pipes go into the house
- Operation down to -25 °C outdoor temperature and up to 75 °C flow (at part load)
- Cooling in summer
- Controlled from your phone with Acond’s HeatUp app, with online monitoring by Acond
- SG Ready and Modbus TCP for control from smart home, solar panels and electricity prices
- Can be supplied with the Coastal package for coastal and salty environments
The heat pump must be installed by an authorised plumbing and electrical installer. Contact us for a complete quote including installation.
Documentation from the factory
Official documents directly from Acond a.s. in the Czech Republic (in English).
